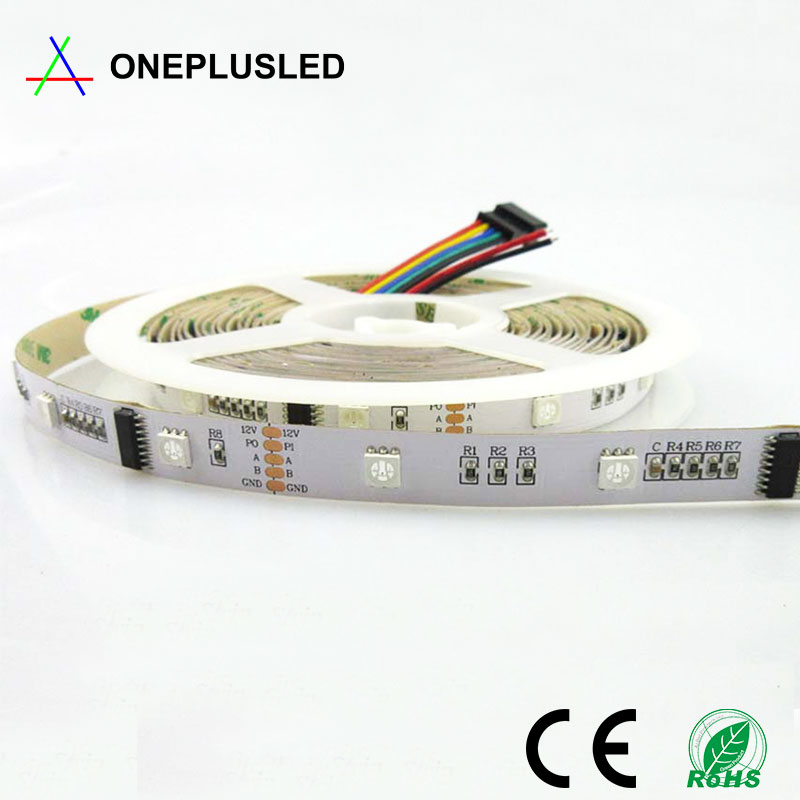

Addressable DMX512 DC12V 30leds/m led strip light

Overview:

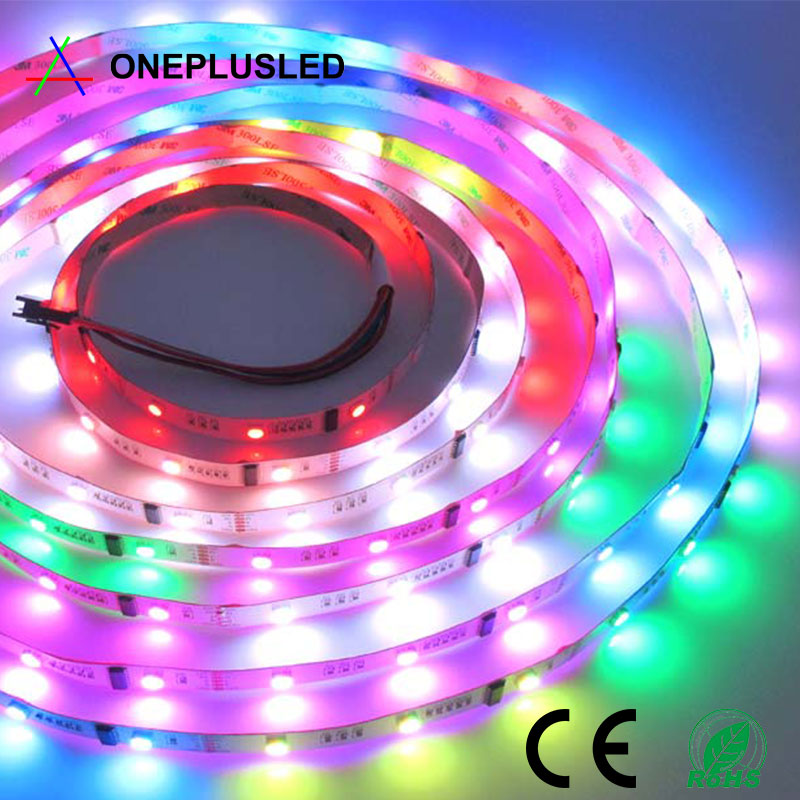

DMX512 LED strip is fully according to standard DMX512 protocol, support to be control directly by DMX console. What’s more, the DMX512 LED strip can be programmable pixel by pixel, more magic color program and wonderful effect.

DMX512 flexible led strip is super strong DMX signal strip with A, B signal parallel signal transfer. 5 cables (V+, PI/PO address writing wire, A(DMX+), B(DMX-), GND), no matter what or how many IC broken, the led strip will work normally. Meanwhile, the MAX485 is inside the DMX512 IC, no need to add the extra 485 panel, more user friendly and convenient for installation.

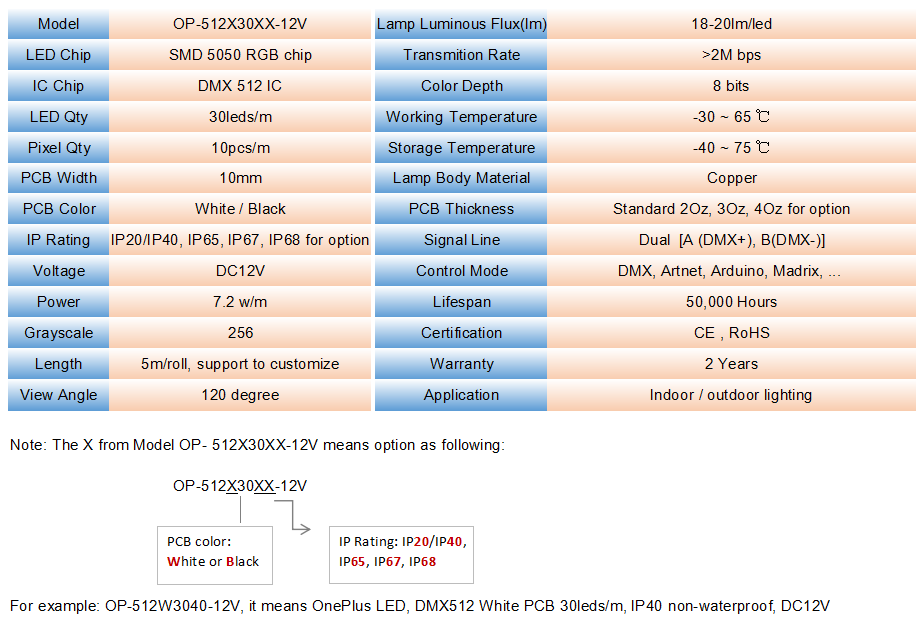

Product Parameters:

Product Description:

1) DMX512 led strip is fully according to the DMX512 protocol, with A, B signal parallel design, signal more stable and reliable.

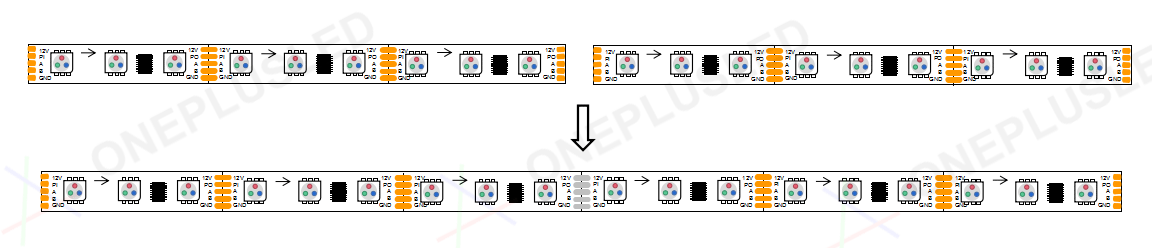

2) Support Break-point continue function, no matter what and how many LEDs broken will not affect following LED, the following LED can keep working, more reliable and safety.

3) DMX512 12V 30leds led strip is power with DC12V, reduce the power drop and save cable connection time and cost.

4) Every 0.5m with solder joint, and 5m/reel in normal case.

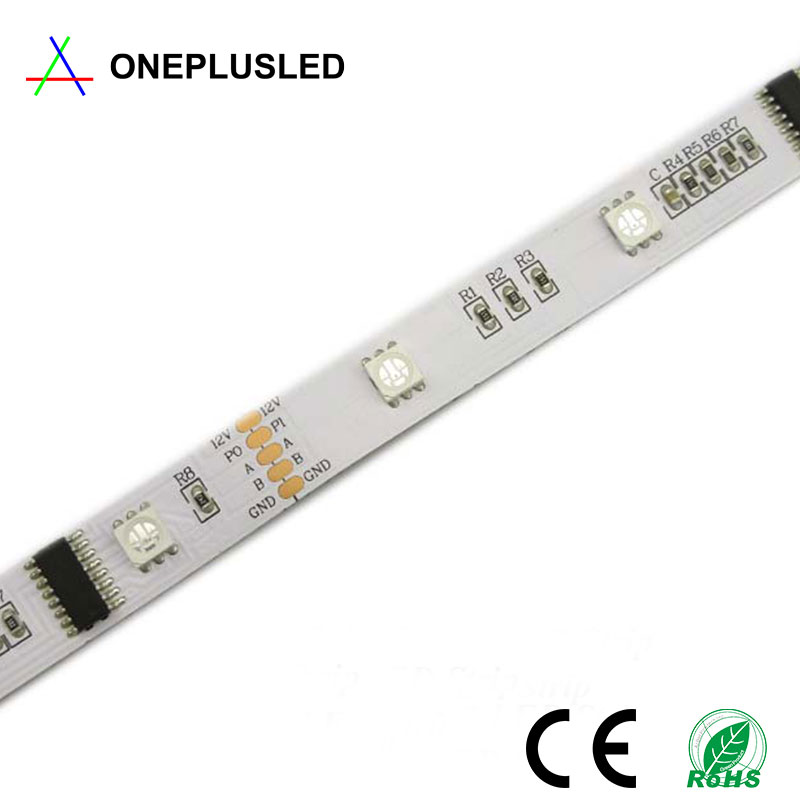

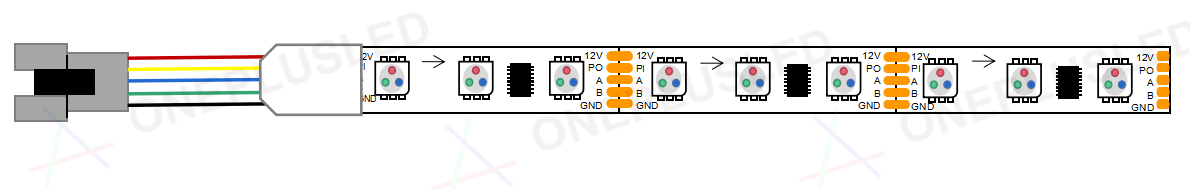

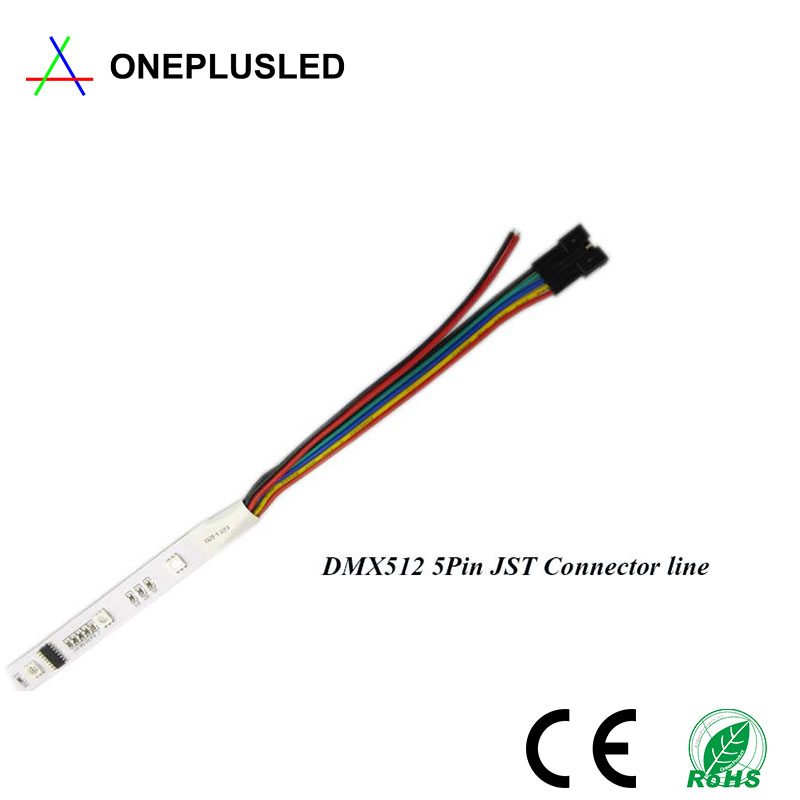

5) DMX512 LED strip is connected with 5-pin JST connector (V+, PI/PO address writing wire, A(DMX+), B(DMX-), GND), 256 gray scale, high brightness, fast data transfer, fast screen refresh, etc.

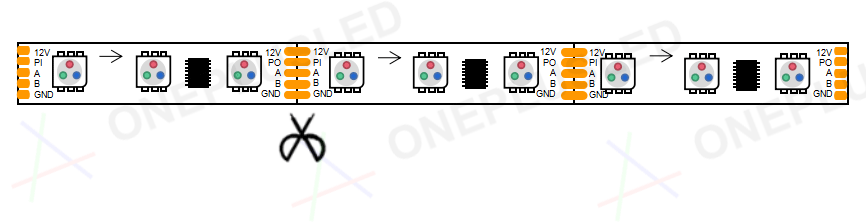

6) Each lamp beads form a loop, can be cut between every loop to meet custom lengths.

7) The led strip has 4 type waterproof level as following:

IP20/IP40----non-waterproof. Using it in indoor and keep away from rain wet

IP65---- Silicone coating. Anti-small water drops, fit on damp location

IP66/IP67---- With silicone tube. Anti-big water drops, fit on outdoor exterior building

IP68---- With silicone tube and silicone coating (IP65+IP67). Fully waterproof, it also be placed in the swimming pool

8) Do not bend strip sharply. Longer runs should be powered from both ends to reduce voltage drop.

9) DMX LED strip support DC5V, DC12V and DV24V voltage to power supply (based on the power design), high safety factor, and is controlled by a DUAL data line from a suitable controller. (PSU and controller are not included)

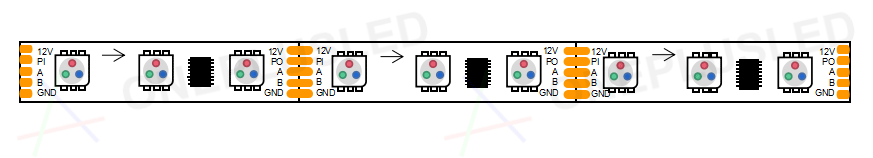

P.S. The following connection drawing is based on DMX512 12V 30leds led strip for reference only.

Installation:

1) For IP40 & IP65 LED strip, clean the installation surface, pull the 3M paper out of the back of LED strip, and then fix to the mounting position directly.

2) For IP67 & IP68 LED strip, clean the installation surface, put the LED strip on the position, and use silicone slip and screw fix to the mounting position. One meter LED strip with 2 pcs silicone slip.

Application:

- City lighting, landscape decoration, advertising wall, Christmas beauty decoration, ...

- Irregular body/building decoration (Night club, KTV, bar, shopping mall, hotel, art work, stage, vigil lighting, ...)

- Public lighting (Schools, hospitals, museums, libraries, airports, subway stations, railway stations, bridges...)

- Ceiling and furniture dark groove trim (Ceiling design, door, windows, wine cabinet, TV background, wardrobe, ...)

- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
