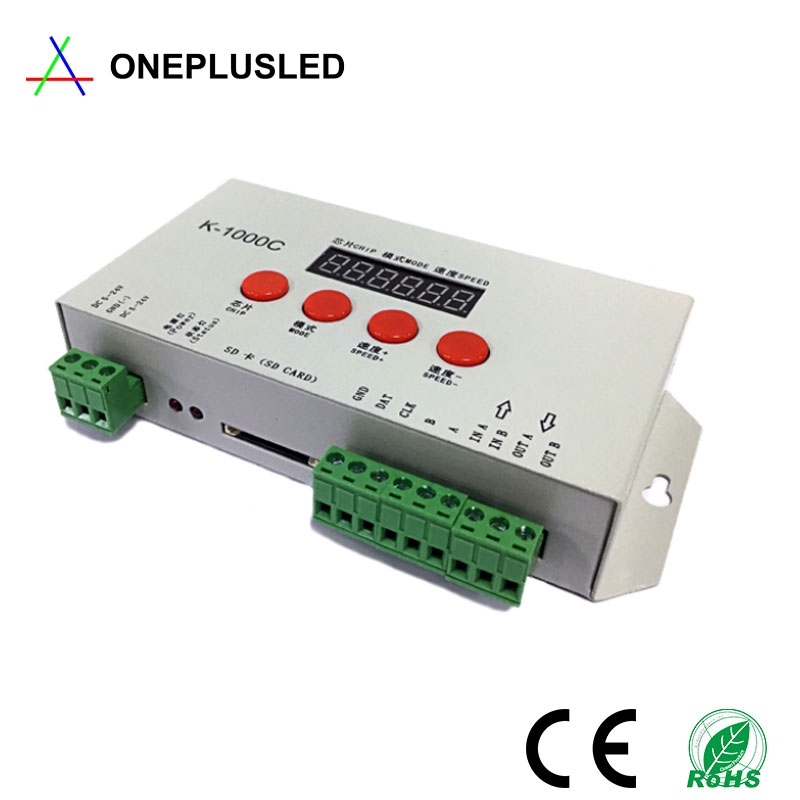

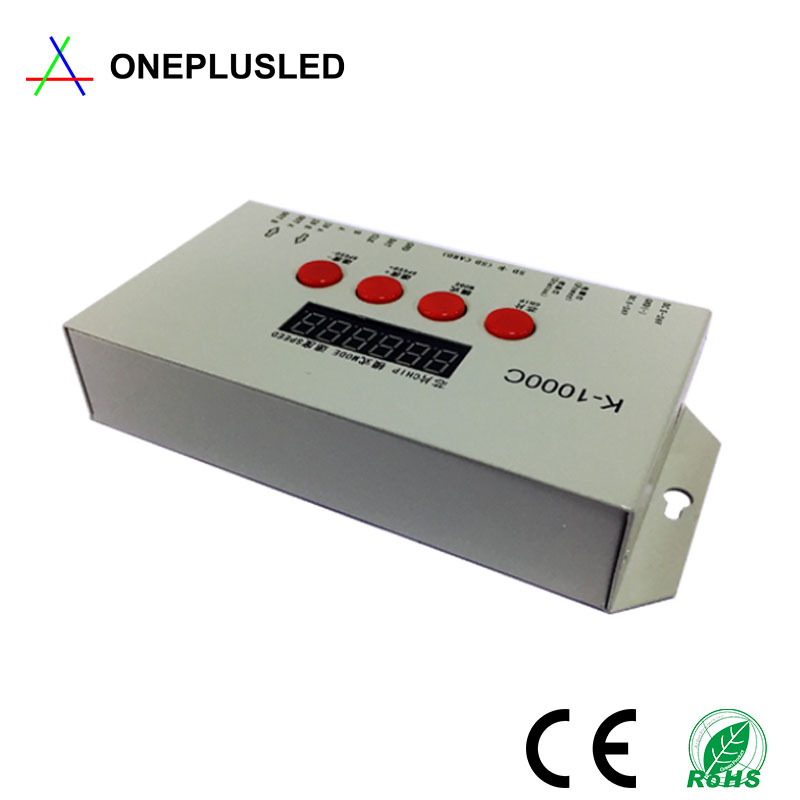

Offline LED controller K-1000C

K-1000C system features:

1. Level 32-65536 gray level control, software Gamma correction processing.

2. Support various point, line and surface light sources, support various rules and special-shaped processing.

3. A single port of the controller outputs, with a maximum of 512/2048 pixels (DMX lamps with a maximum of 512 pixels).

4. The playback content is stored in the SD card. The SD card can store up to 32 effect files. The SD card capacity supports 128MB-32GB.

5. The controller can be used in multiple cascades, and the cascade adopts photoelectric isolation: anti-interference and better stability. The cascading distance between two units can reach 150 meters, and 0.5 square pure copper power cords are required.

6. The loaded IC of the controller can be locked in the software, or not locked in the software. The loaded IC can be selected by adjusting the chip button of the controller. This solution is more flexible and convenient.

7. The IC controller for DMX lamps has its own address writing function; in addition, it can be used with our 2016 LedEdit-K V3.26 or above software to set the one-click address writing function.

8. It supports 4 channels (RGBW) pixels on the loaded lamps, or split into single channel pixels.

9. Enhanced TTL and 485 differential (DMX) signal output.

10. The controller comes with 22 test effects.

Support IC Models:

00: UCS1903,1909,1912,2903,2904,2909,2912; TM1803,1804,1809,1812;

SM16703, 16709, 16712; WS2811, WS2812, WS2813, WS2815, WS2818;

INK1003; LX3203,1603,1103; GS8205,8206; SK6812

(maximum 2048 pixels)

01: SM16716,16726 (maximum 2048 pixels)

02: P9813 (up to 2048 pixels)

03: LPD6803 (up to 2048 pixels)

04: LX1003,1203 (maximum 2048 pixels)

05: WS2801 (up to 2048 pixels)

06: LPD1886 (up to 2048 pixels)

07: TM1913 (up to 2048 pixels)

08: TM1914 (up to 2048 pixels)

09: P9883, P9823 (up to 2048 pixels)

10: DMX (up to 512 pixels with light, recommended loading ≤ 320 pixels)

11: DMX 500K (up to 512 pixels with light, recommended loading ≤ 320 pixels)

12: DMX 250K-CZF (Maximum 512 pixels with light, recommended load≤320 pixels)

13: DMX 250K-CZF (Maximum 512 pixels with light, recommended load≤320 pixels)

14: UCS5603-Test

15: UCS5603A

16: UCS5603B

17: TM1814

Remarks: 1. For lamps with four channels of RGBW, K-1000-RGBW should be selected.

2. For single-channel lamps with load, K-1000-W needs to be selected. At this time, one channel represents one pixel, and the software effect is white light.

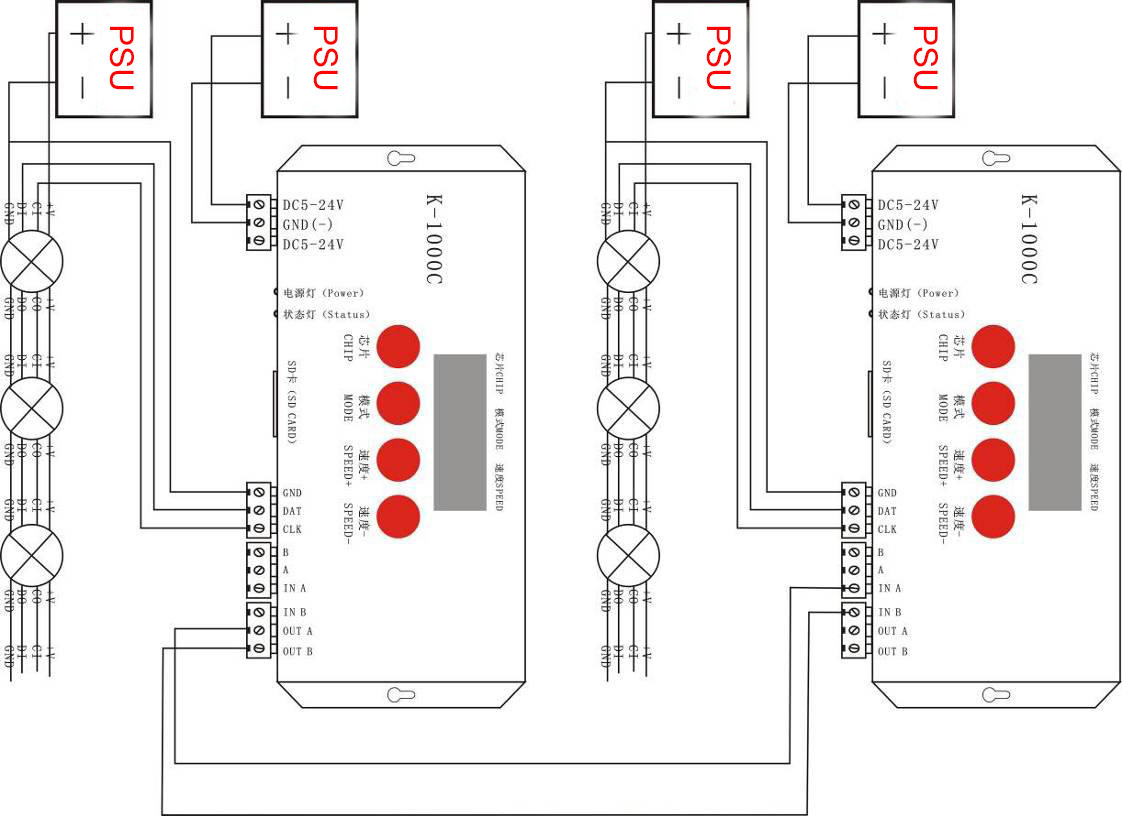

Connection Drawing:
