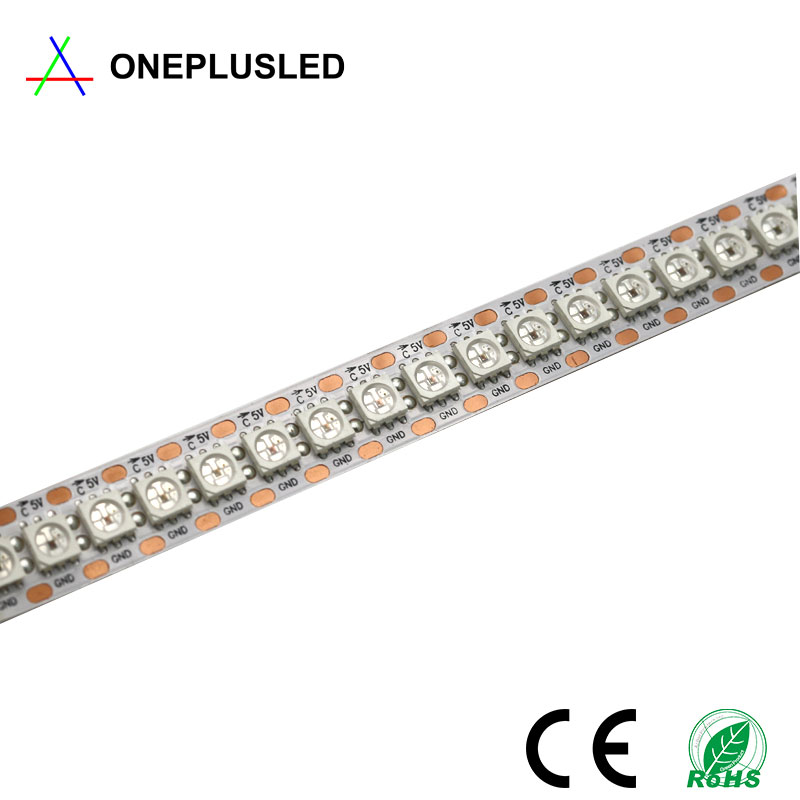

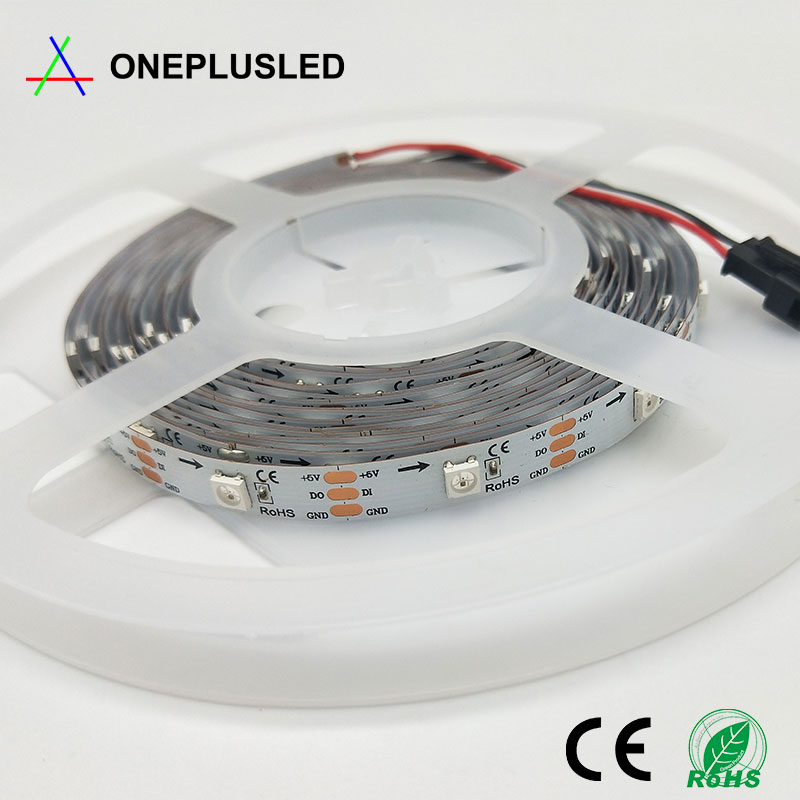

IC built-in LED WS2812B / SK6812 DC5V 30leds/m strip light

Overview:

WS2812B/SK6812 DC5V 30leds/m LED strip is assembly by FPCB (flexible printed circuit board) , SMD LED lights and components, so the whole is very light and thin. It occupies a small space and can be cut arbitrarily, the soft FPC material let it can be wound at will, move freely in three-dimensional space without breaking. It is suitable for installation in irregular places and small spaces, advertising, decorative lighting, and various Any combination of patterns. What is more, the LED chip is a built-in IC , and with few components, can make high pixels and attractive appearance easier.

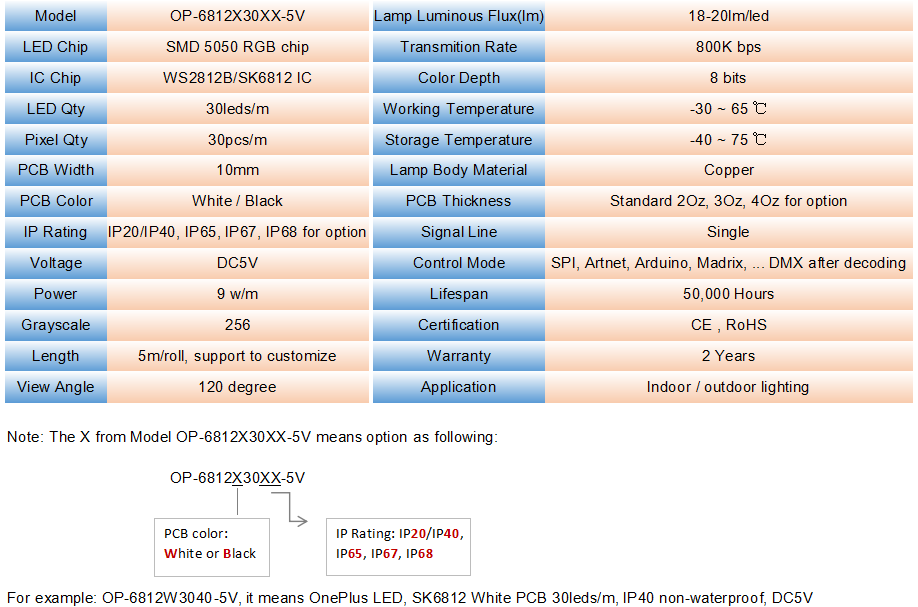

Product Parameters:

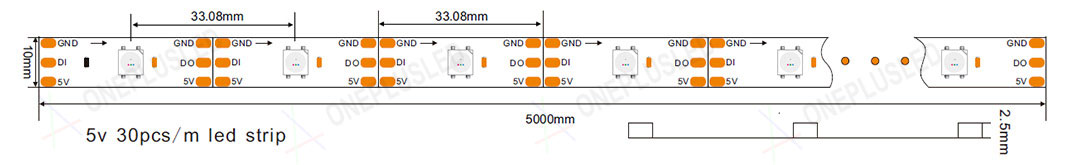

Product Dimension:

Product Description:

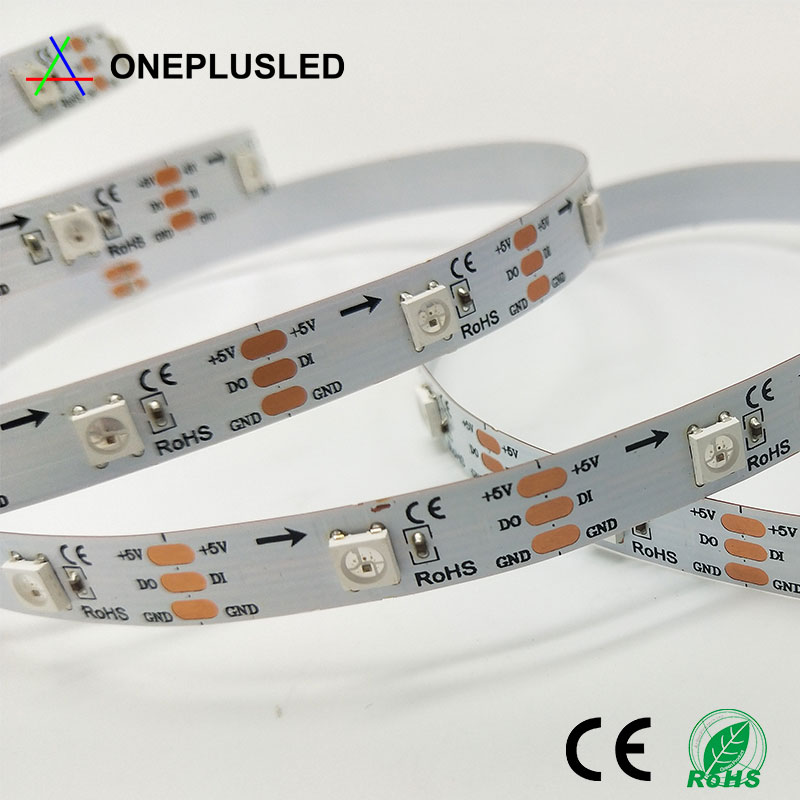

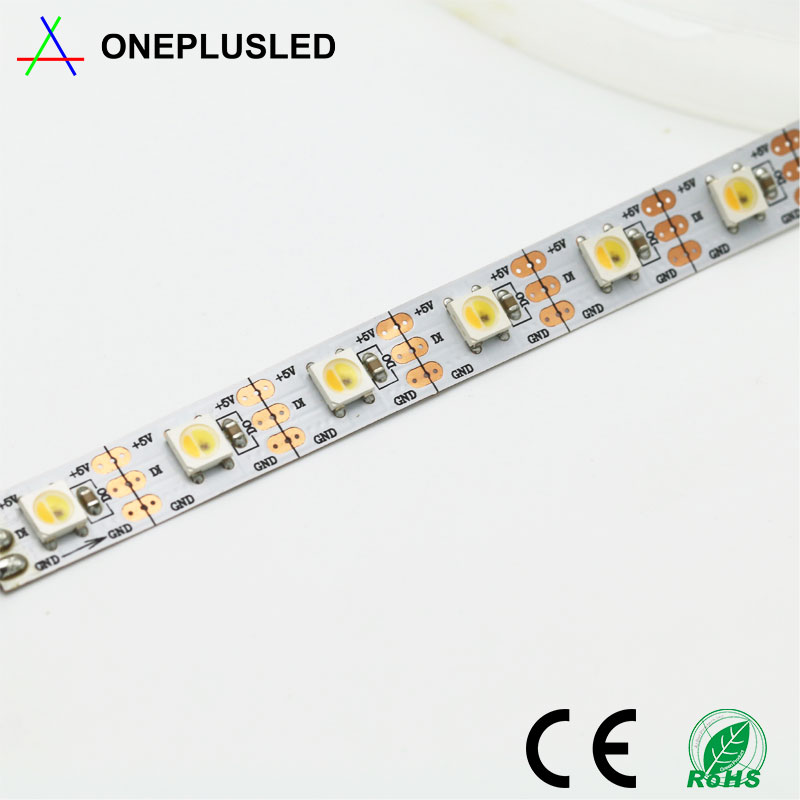

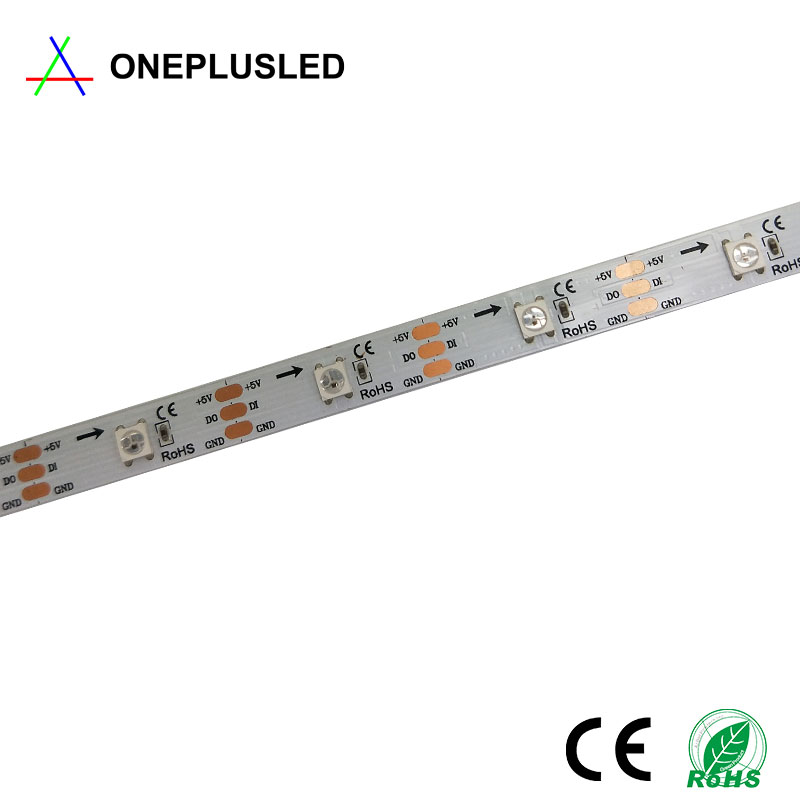

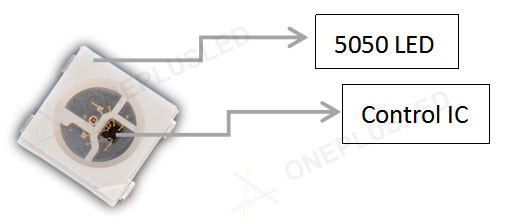

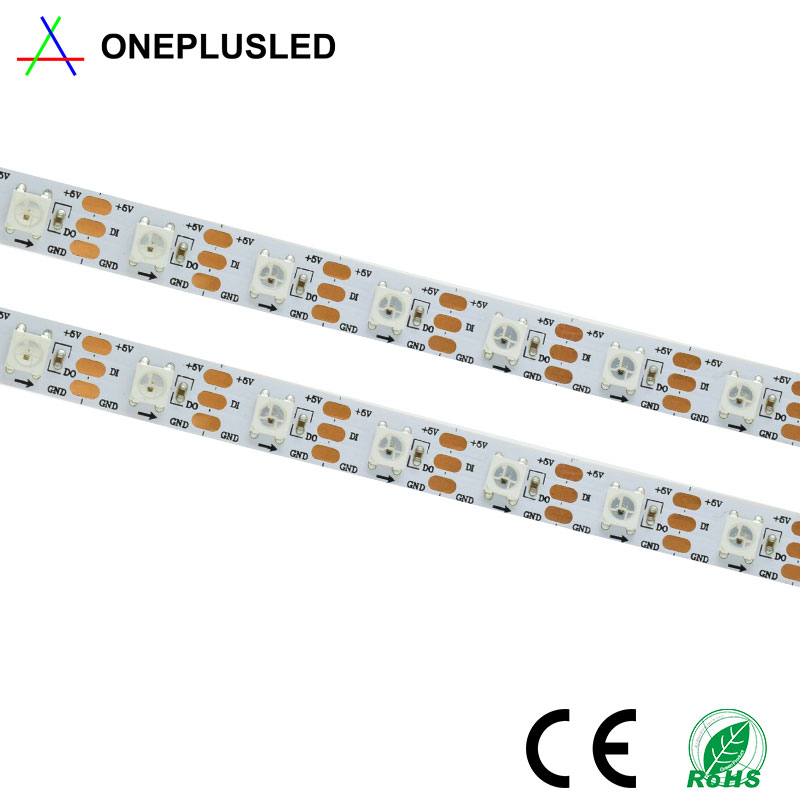

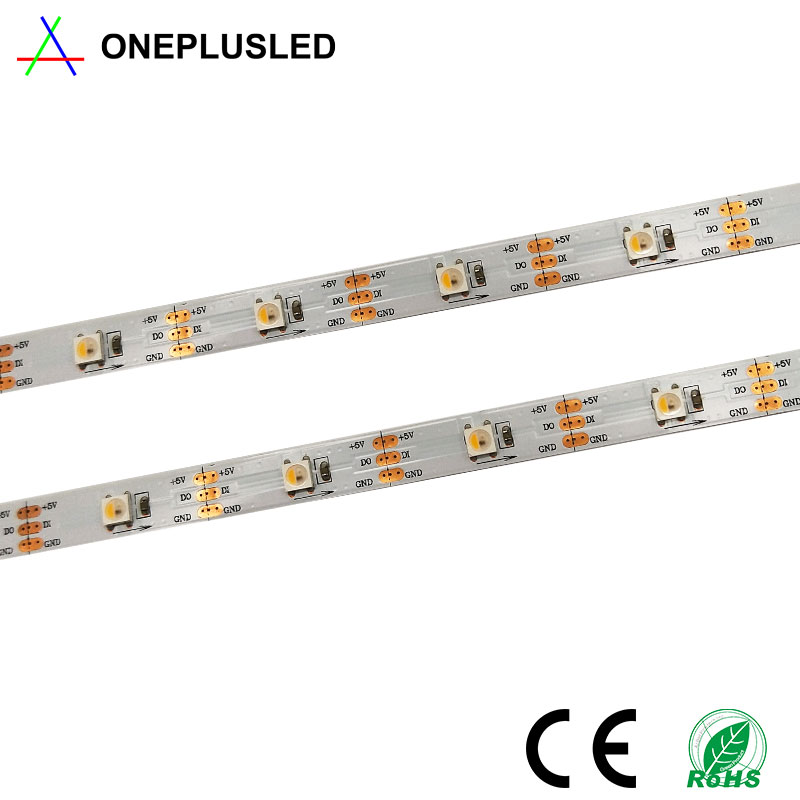

1) WS2812B/SK6812 chip built-in a 5050 LED, one LED one pixel.

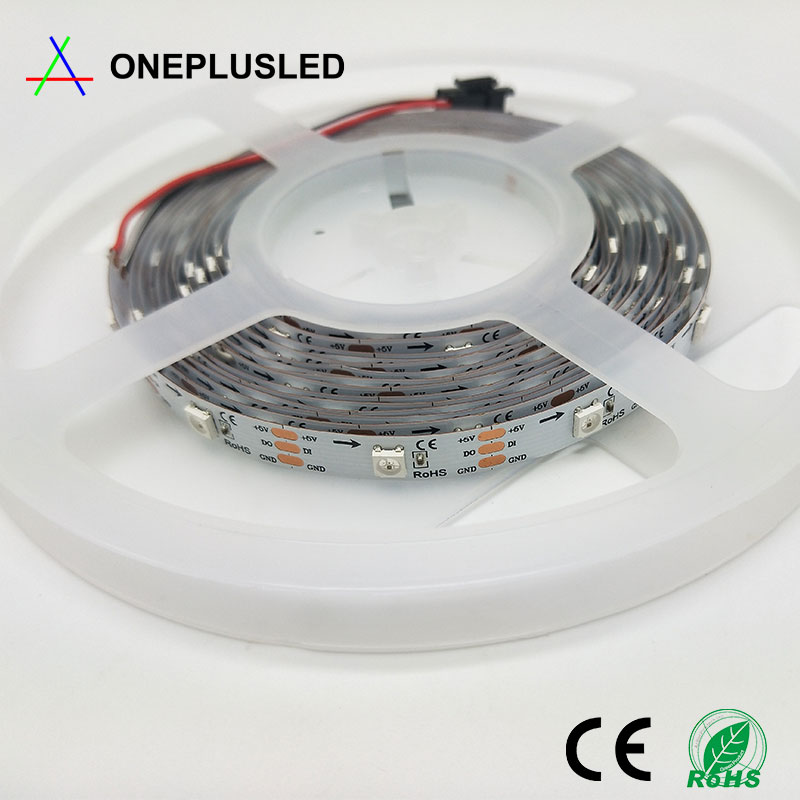

2) Every 0.5m with solder joint, and 5m/reel in normal case.

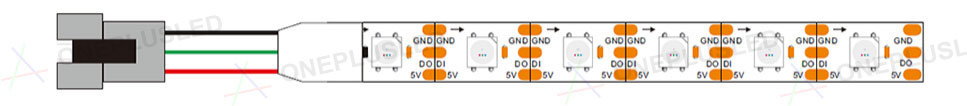

3) WS2812B/SK6812 LED strip is connected with 3-pin JST connector( one data line, two power lines), 256 gray scale, high brightness, fast data transfer, fast screen refresh, etc.

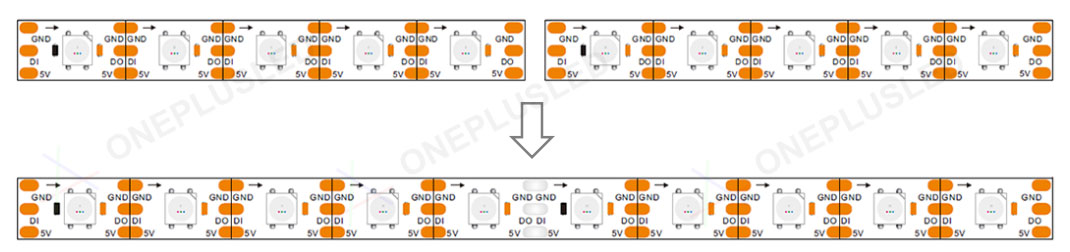

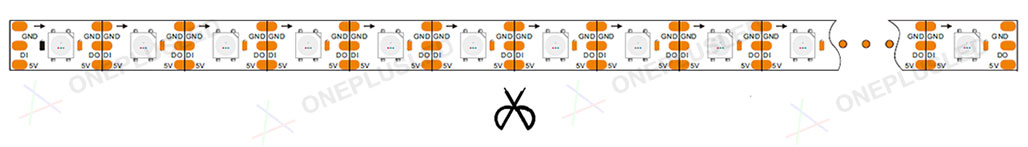

4) Each lamp beads form a loop, can be cut between every loop to meet custom lengths.

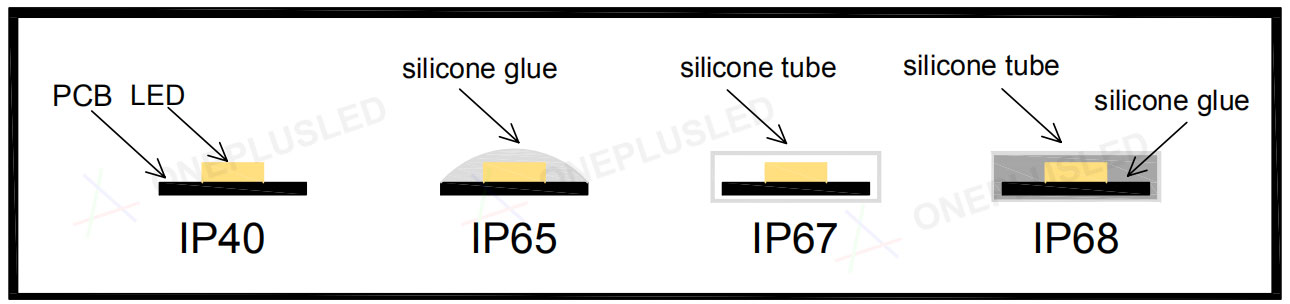

5) The led strip has 4 type waterproof level as following:

IP20/IP40----Non-waterproof. Using it in indoor and keep away from rain wet

IP65---- Silicone coating. Anti small water drop, fit on damp location

IP66/IP67---- With silicone tube. Anti big water drop, fit on outdoor exterior building

IP68---- With silicone tube and silicone coating (IP65+IP67). Fully waterproof,  it also be placed in the swimming pool

6) Do not bend strip sharply. Do not exceed 2 meters in a single circuit. Longer runs should be powered from both ends to reduce voltage drop.

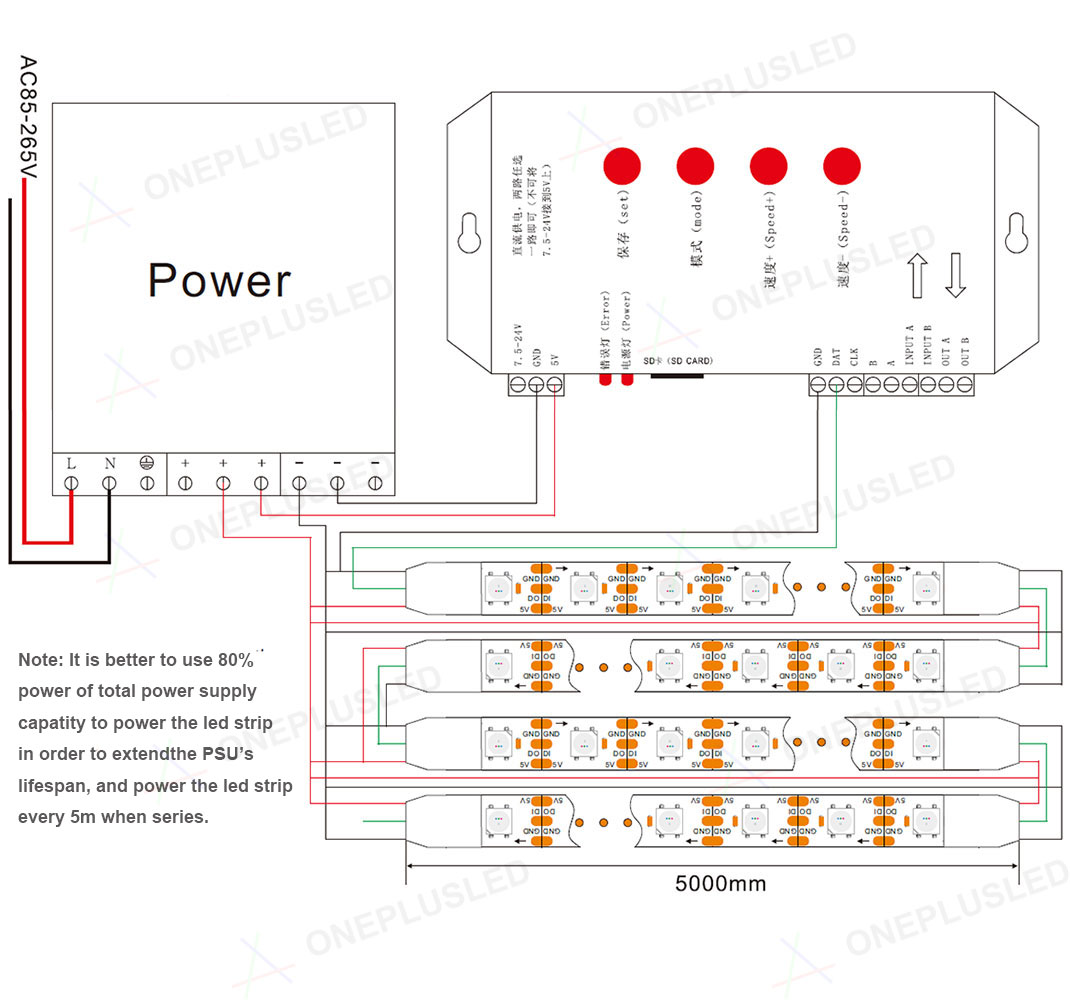

7) WS2812B/SK6812 LED strip using DC5V voltage to power supply, high safety factor, and is controlled by a single data line from a suitable controller. (PSU and controller are not included)

Installation:

1) For IP40 & IP65 LED strip, clean the installation surface, pull the 3M paper out of the back of LED strip, and then fix to the mounting position directly.

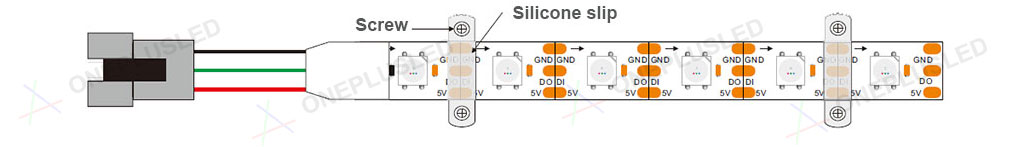

2) For IP67 & IP68 LED strip, clean the installation surface, put the LED strip on the position, and use silicone slip and screw fix to the mounting position. One meter LED strip with 2 pcs silicone slip.

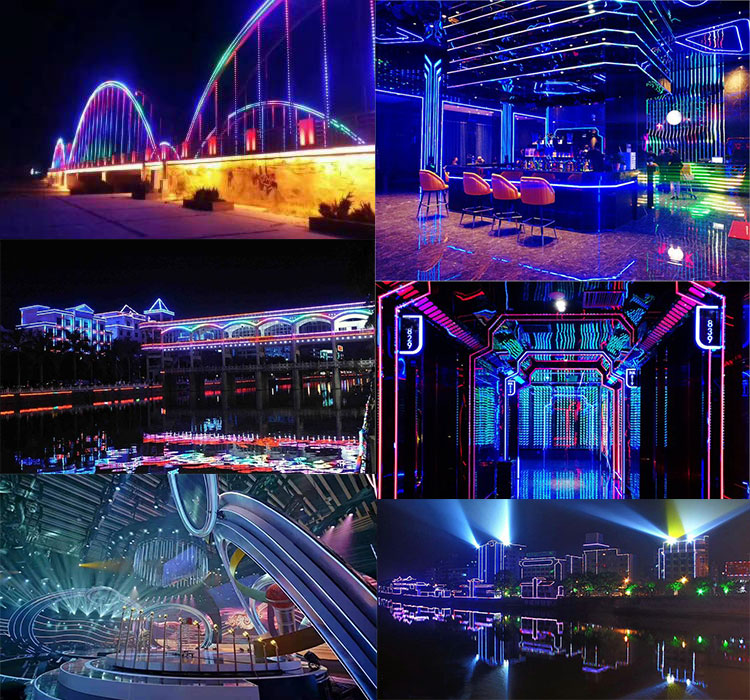

Application:

1） City lighting, landscape decoration, advertising wall, Christmas beauty decoration,...

2） Irregular body/building decoration (Night club, KTV, bar, shopping mall, hotel, art work, stage, vigil lighting, Theme park, ...)

3） Public lighting (Schools, hospitals, museums, libraries, airports, subway stations, railway stations, bridges...)

4） Ceiling and furniture dark groove trim (Ceiling design, door, windows, wine cabinet, TV background, wardrobe, ...）

5） Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

...
