Indoor/outdoor SMD5050 RGB led strip light

Overview:

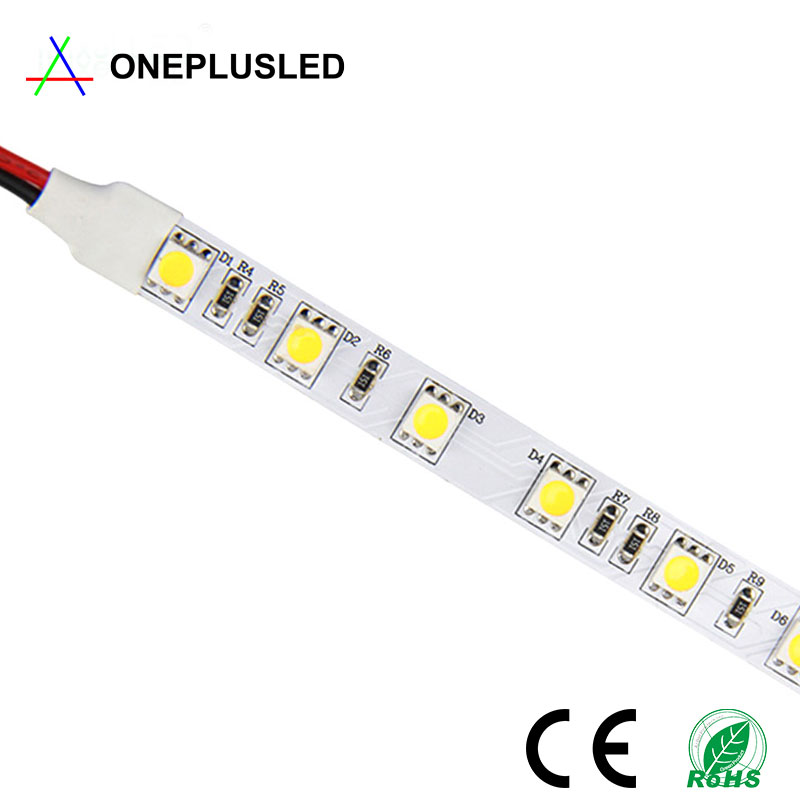

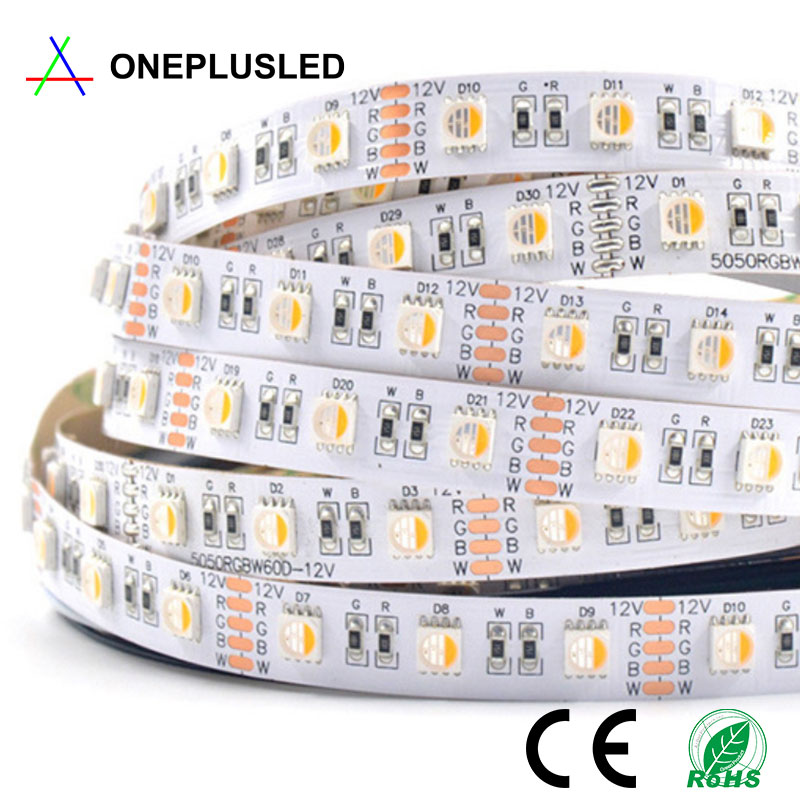

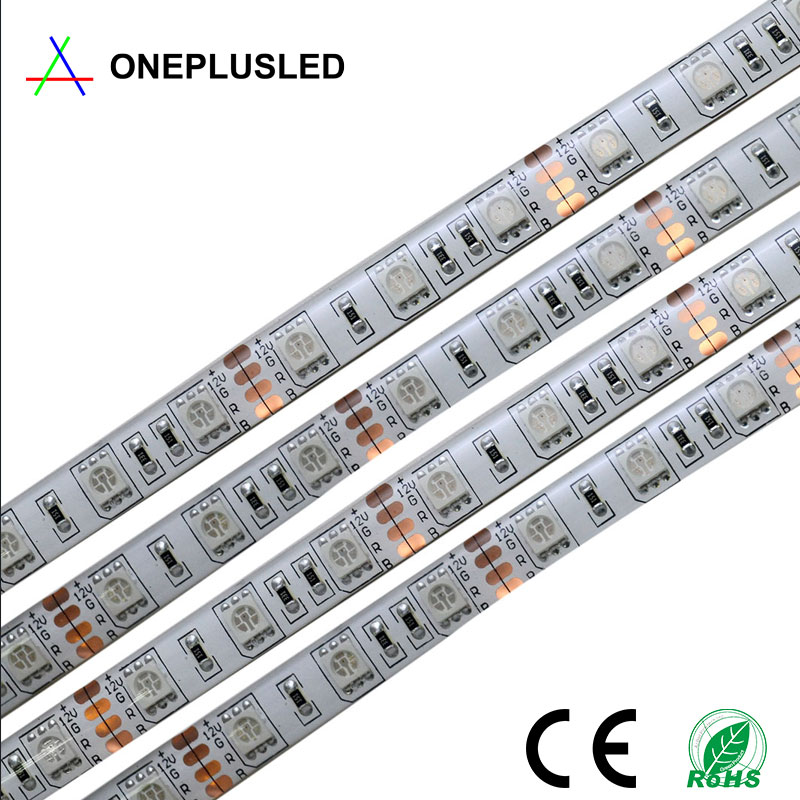

SMD5050 RGB LED strip is assembly by FPCB (flexible printed circuit board), SMD LED lights and components, so the whole is very light and thin. It occupies a small space and can be cut arbitrarily, the soft FPC material let it can be bend at will, move freely in three-dimensional space without breaking. It is suitable for installation in irregular places and small spaces, advertising, commercial lighting, decorative lighting, and various Any combination of patterns.

Optional Items:

Note: Other items please directly inquiry.

Product Description:

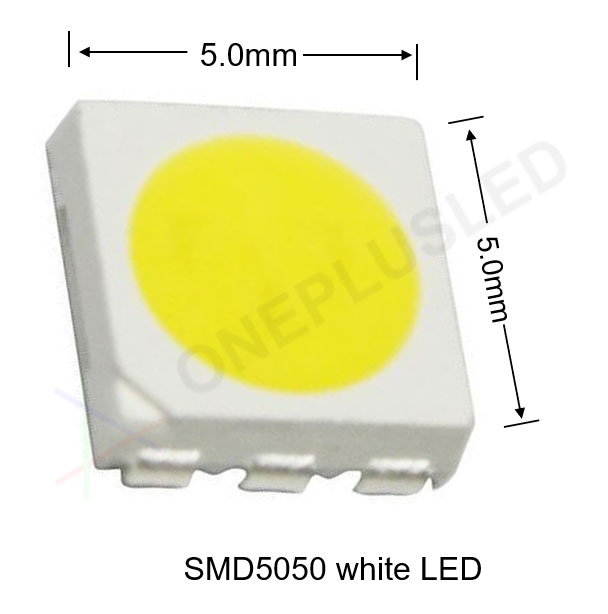

1) SMD5050 led chip length & width are 5.0mm, so call it as SMD5050.

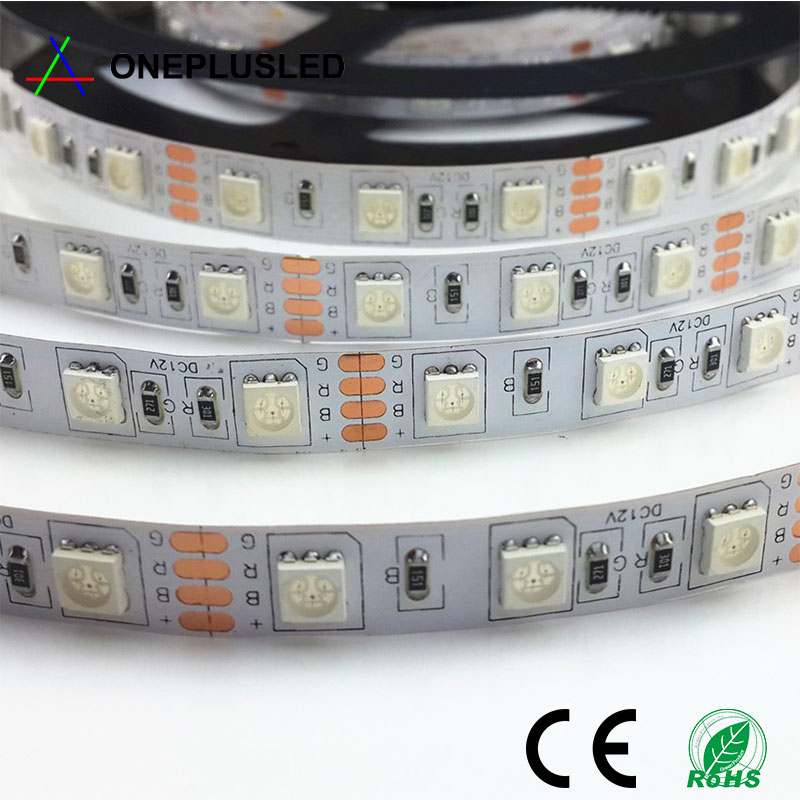

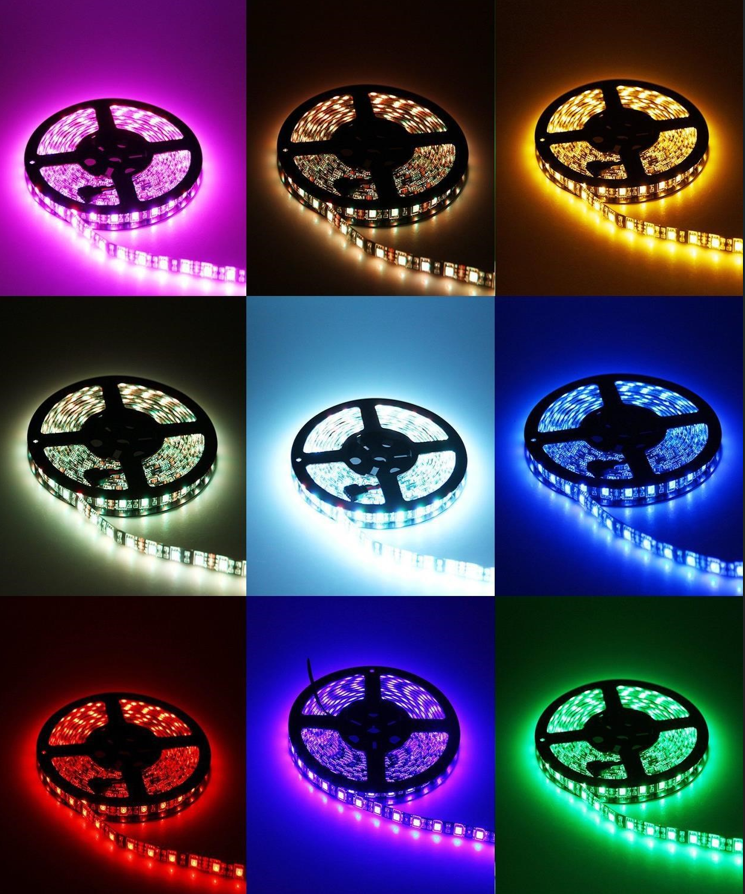

2) SMD5050 RGB led strip has R, G, B chip inside one LED, can show colorful lights.

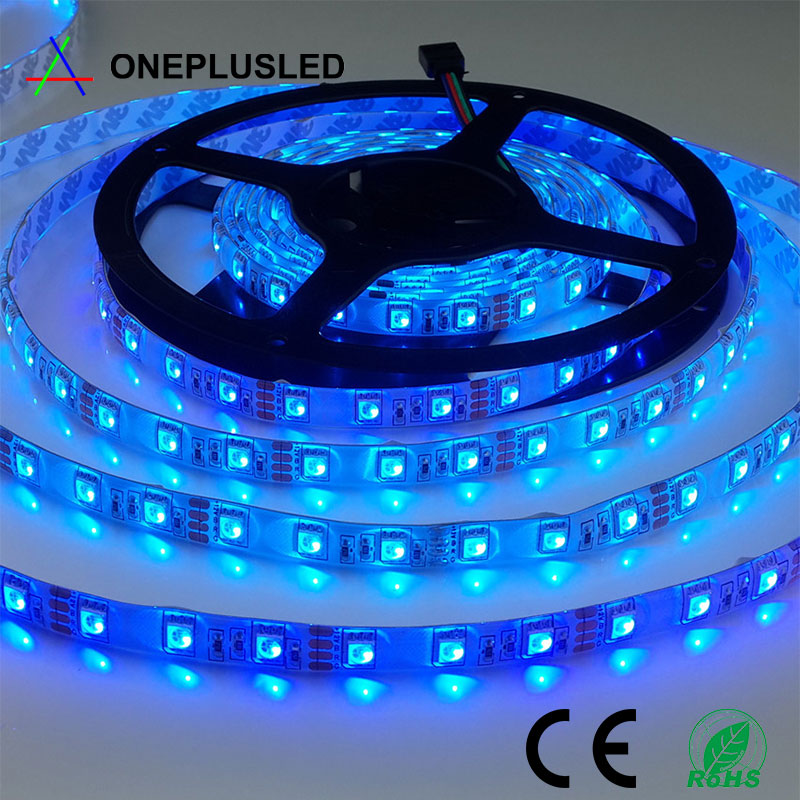

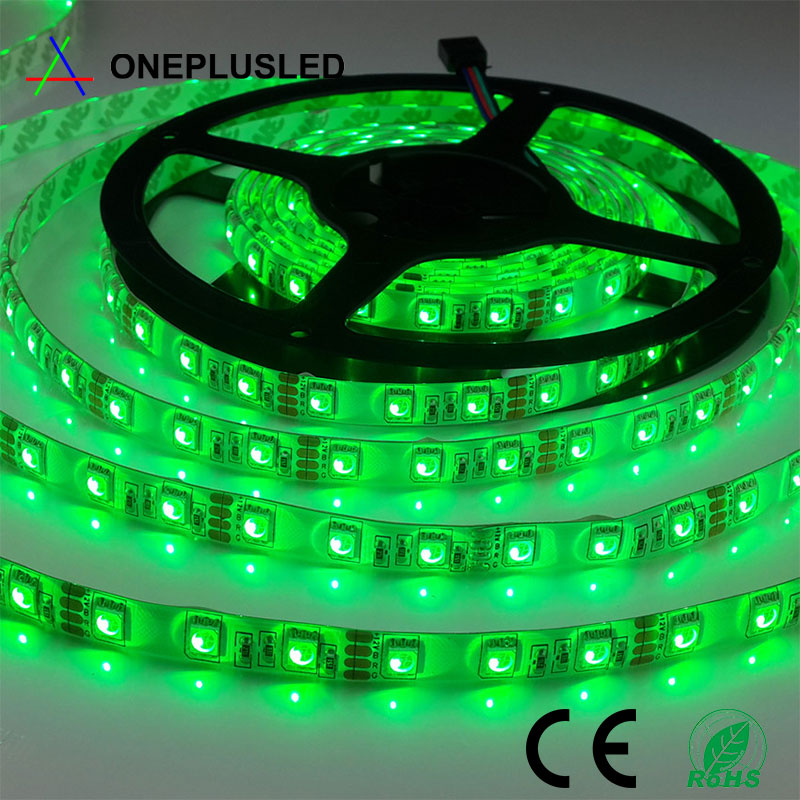

3) Every 0.5m with solder joint, and 5m/reel in normal case. Customized design is available.

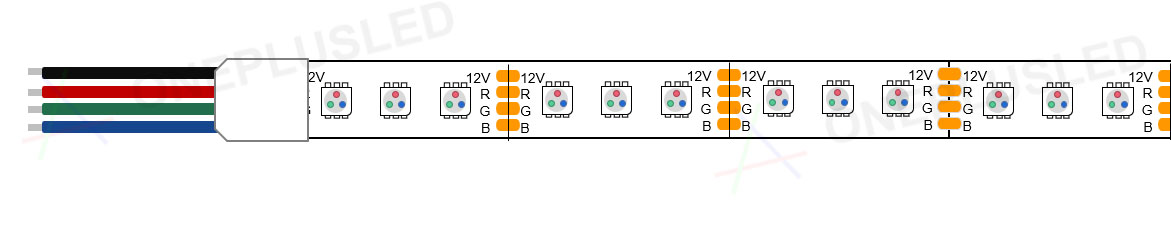

4) SMD5050 RGB led strip is connected with 4-line cable or 4pin JST connector, R, G, B and voltage.

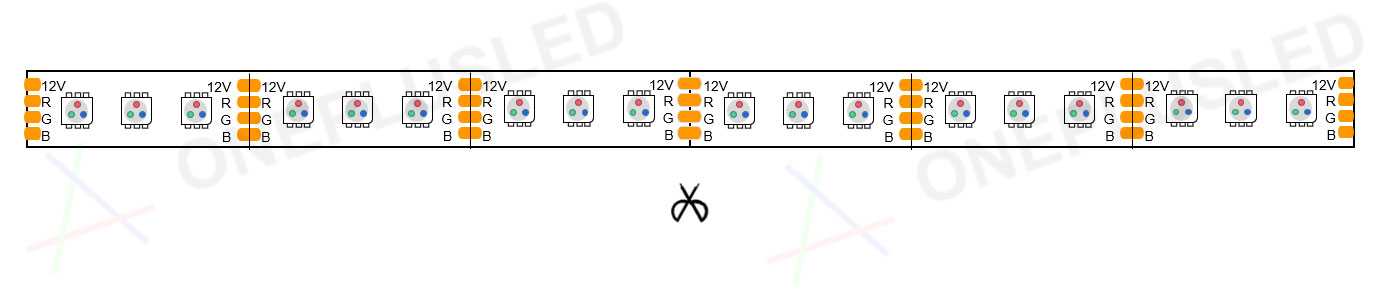

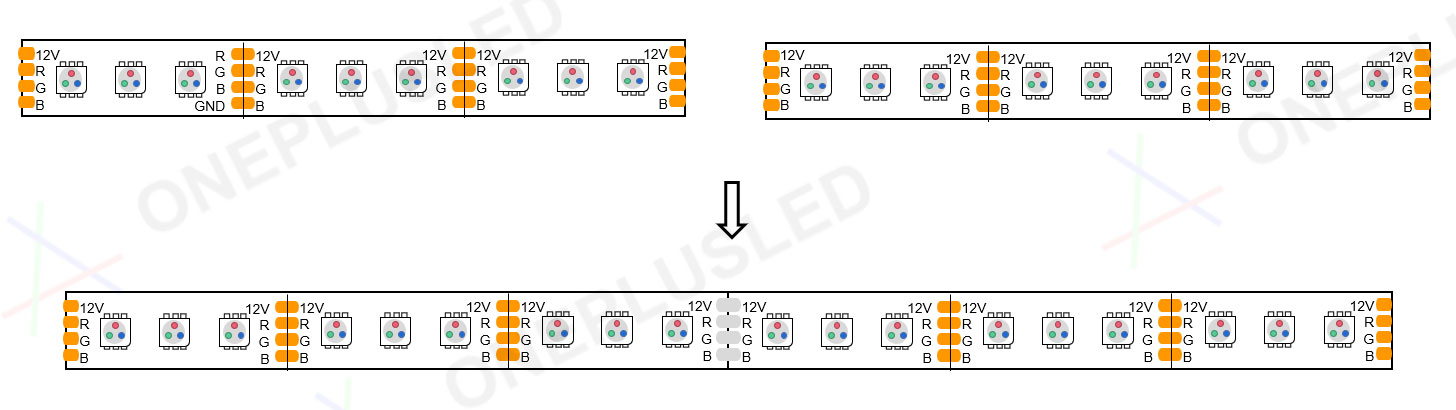

5) Each group of LEDs form a loop, can be cut between every loop to meet custom lengths.

For DC5V, 1led per group;

For DC12V, 3leds per group;

For DC24V, 6leds per group.

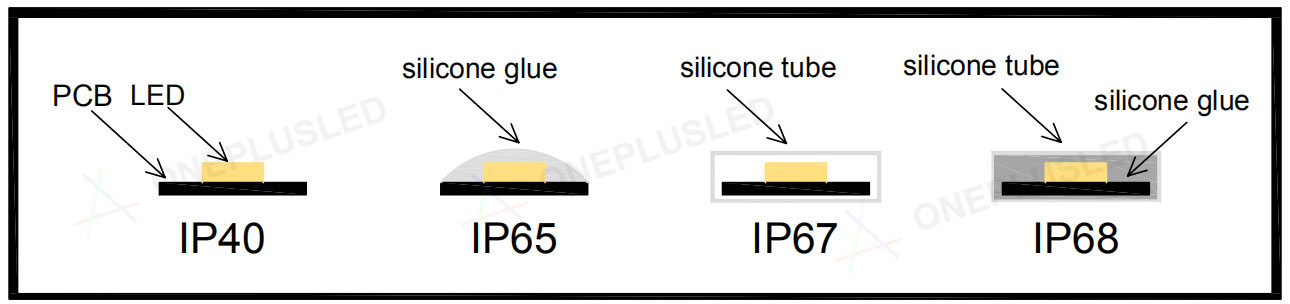

6) The led strip has 4 type waterproof level as following:

IP20/IP40----Non-waterproof. Using it in indoor and keep away from rain wet

IP65---- Silicone coating. Anti-small water drops, fit on damp location

IP66/IP67---- With silicone tube. Anti-big water drops, fit on outdoor exterior building

IP68---- With silicone tube and silicone coating (IP65+IP67). Fully waterproof, it also be placed in the swimming pool

Installation:

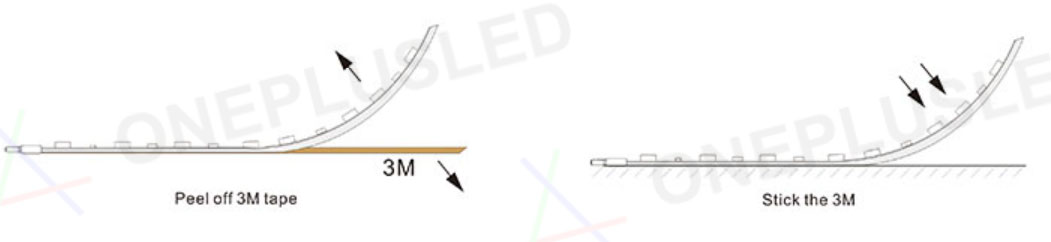

1) For IP40 & IP65 LED strip, clean the installation surface, pull the 3M paper out of the back of LED strip, and then fix to the mounting position directly.

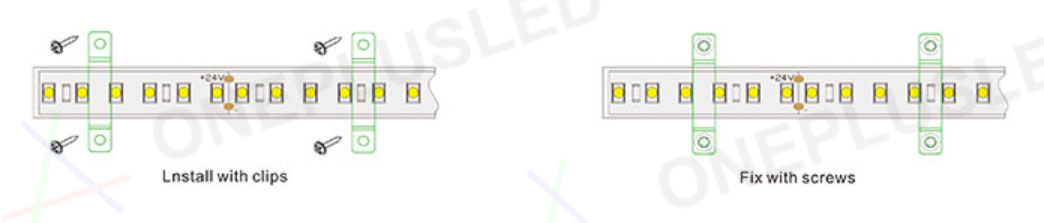

2) For IP67 & IP68 LED strip, clean the installation surface, put the LED strip on the position, and use silicone slip and screw fix to the mounting position. One meter LED strip with 2 pcs silicone slip.

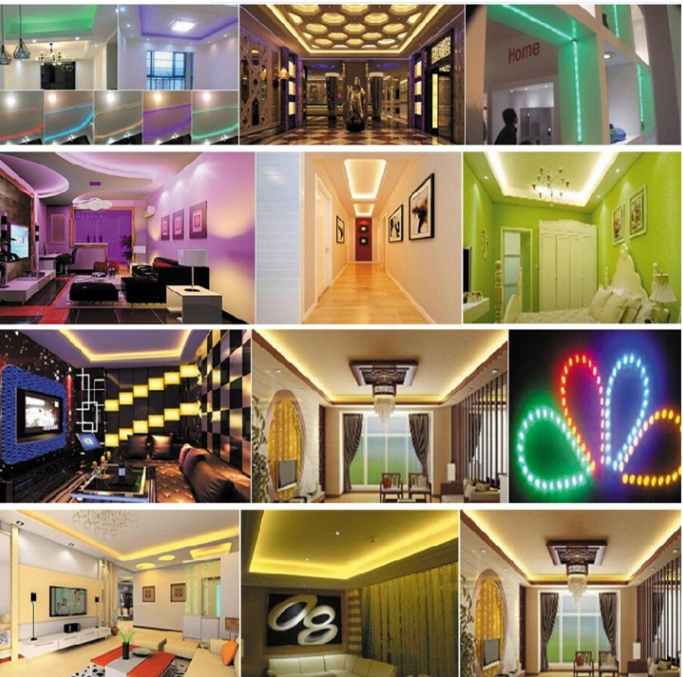

Application:

- City lighting, landscape decoration, advertising wall, Christmas beauty decoration, ...

- Irregular body/building decoration (Night club, KTV, bar, shopping mall, hotel, art work, stage, vigil lighting, ...)

- Public lighting (Schools, hospitals, museums, libraries, airports, subway stations, railway stations, bridges...)

- Ceiling and furniture dark groove trim (Ceiling design, door, windows, wine cabinet, TV background, wardrobe, ...)

- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
