SMD5050 single color (Red, Green, Blue, White) led strip light

Overview:

SMD5050 single color LED strip is assembly by FPCB (flexible printed circuit board), SMD LED lights and components, so the whole is very light and thin. It occupies a small space and can be cut arbitrarily, the soft FPC material let it can be bend at will, move freely in three-dimensional space without breaking. It is suitable for installation in irregular places and small spaces, advertising, commercial lighting, decorative lighting, and various Any combination of patterns.

Optional Items:

Note: Other items please directly inquiry.

Product Description:

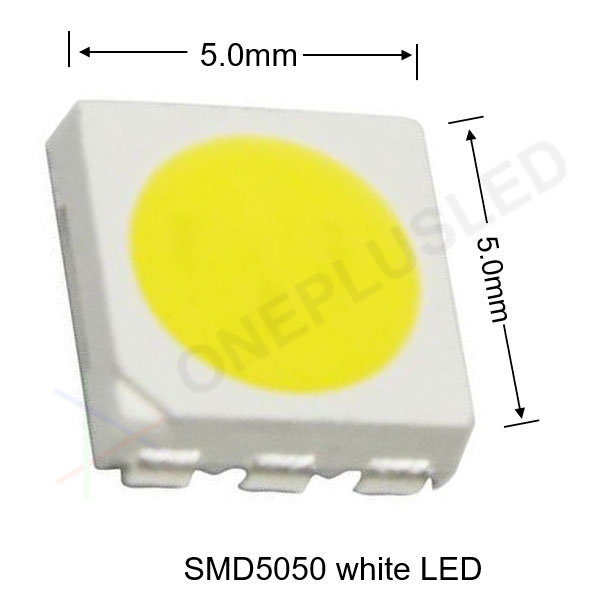

1) SMD5050 led chip length & width are 5.0mm, so call it as SMD5050.

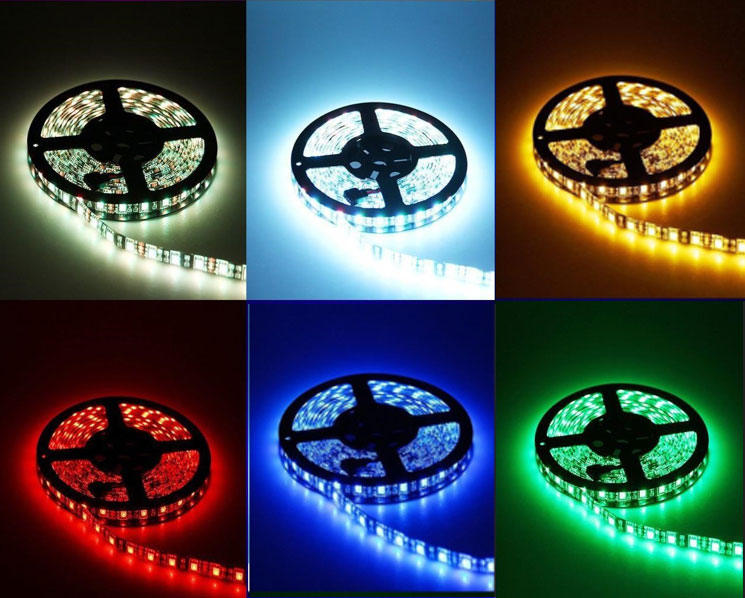

2) SMD5050 single led strip has Red, Green, Blue and White (warm white, nature white and cold white) for option.

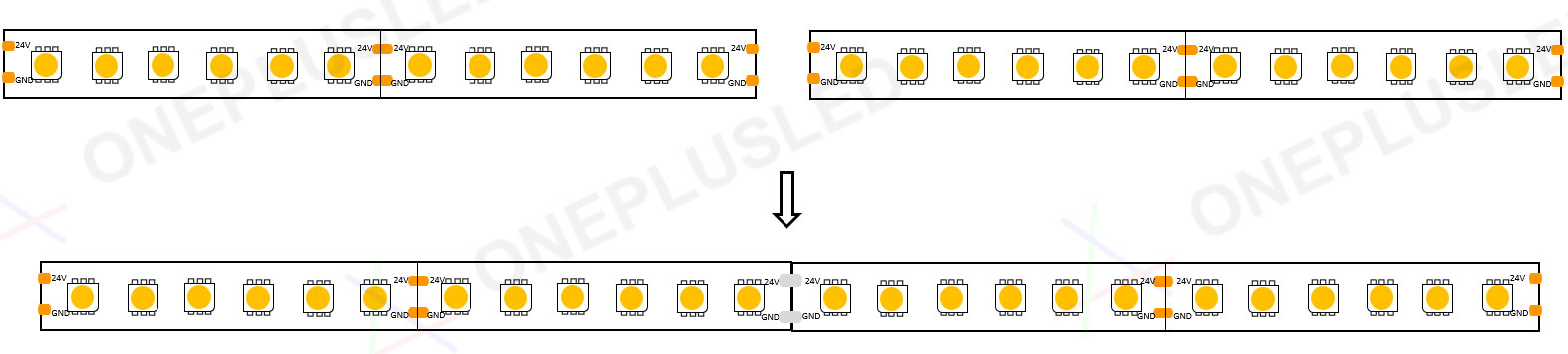

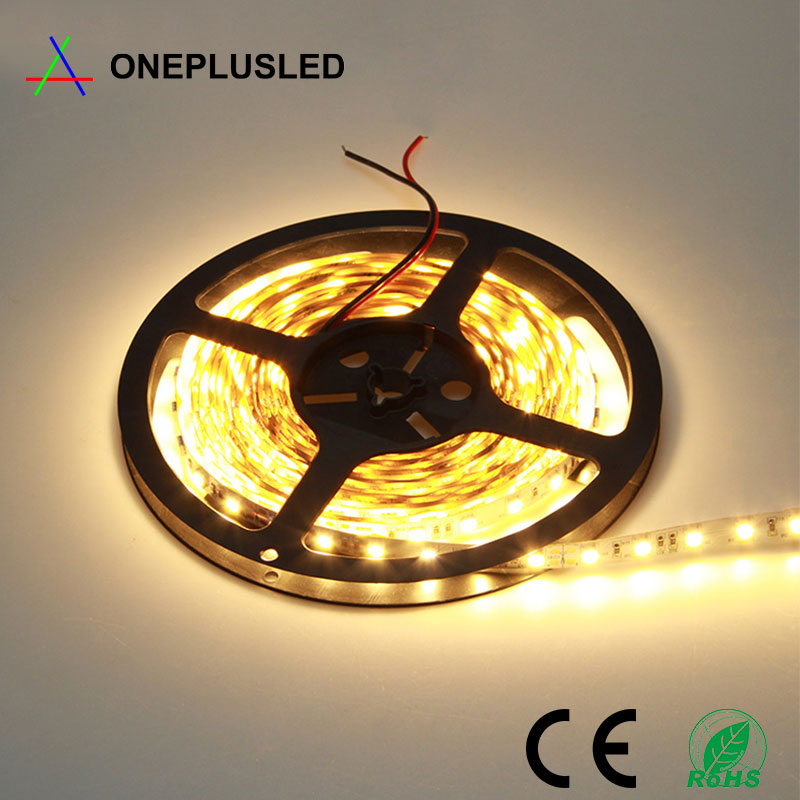

3) Every 0.5m with solder joint, and 5m/reel in normal case. Customized design is available.

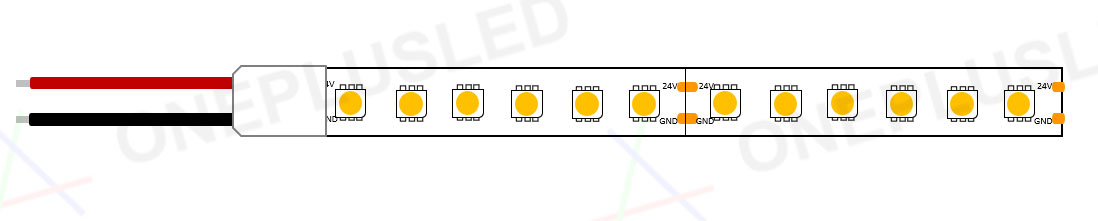

4) SMD5050 singel color led strip is connected with 2-line cable, voltage and GND..

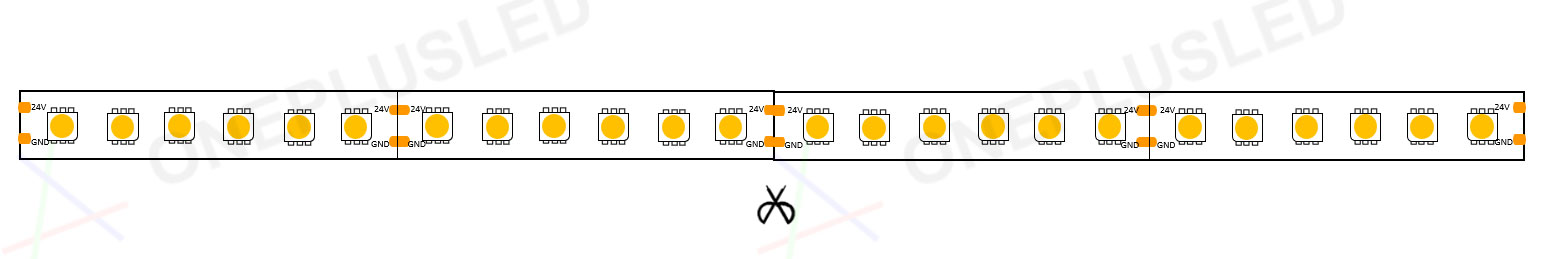

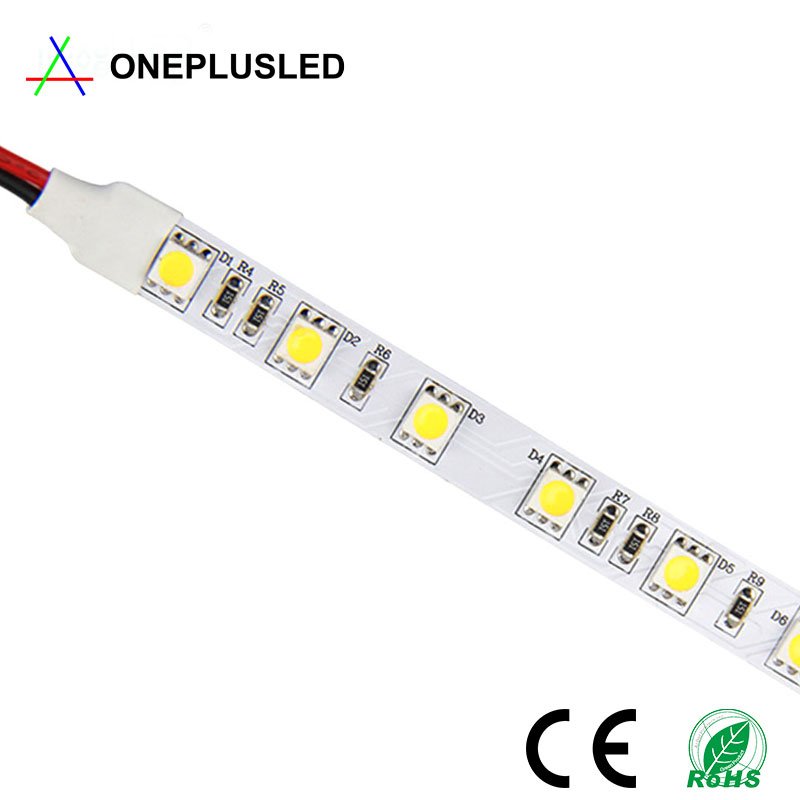

5) Each group of LEDs form a loop, can be cut between every loop to meet custom lengths.

For DC5V, 1led per group;

For DC12V, 3leds per group;

For DC24V, 6leds per group.

6) The led strip has 4 type waterproof level as following:

IP20/IP40----Non-waterproof. Using it in indoor and keep away from rain wet

IP65---- Silicone coating. Anti-small water drops, fit on damp location

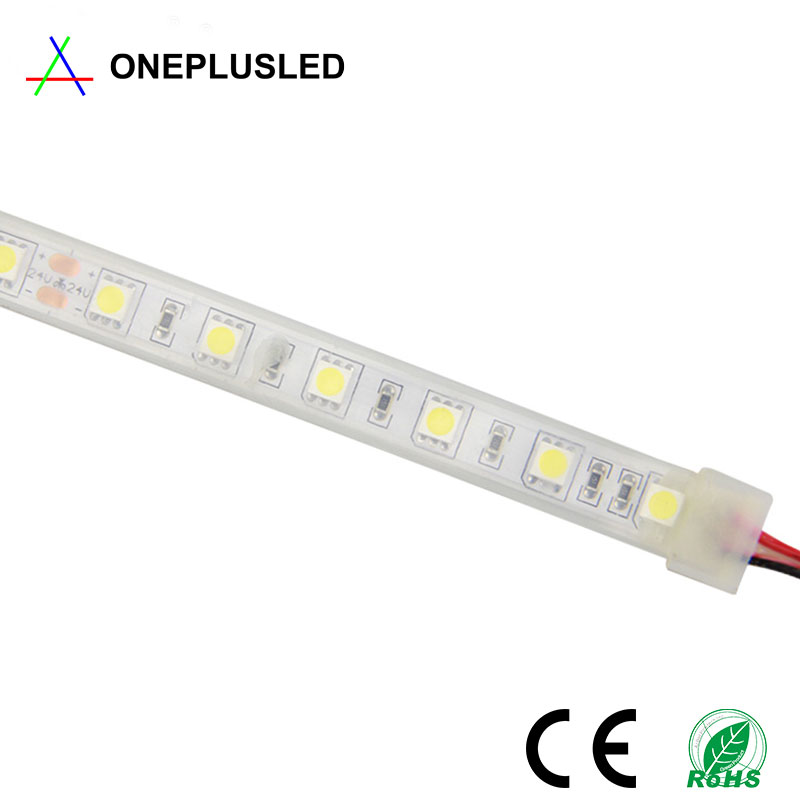

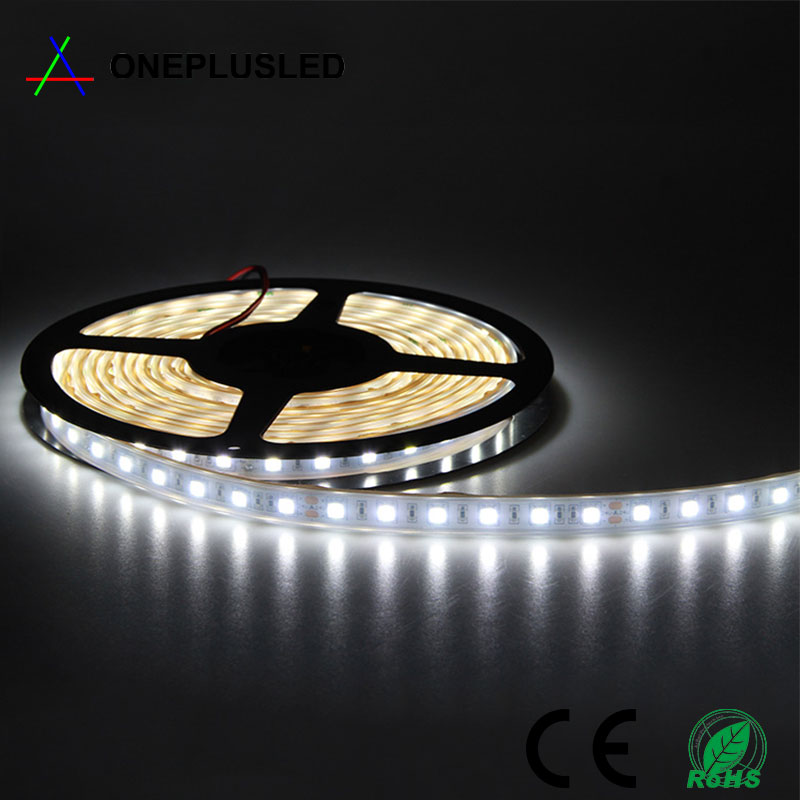

IP66/IP67---- With silicone tube. Anti-big water drops, fit on outdoor exterior building

IP68---- With silicone tube and silicone coating (IP65+IP67). Fully waterproof, it also be placed in the swimming pool

Installation:

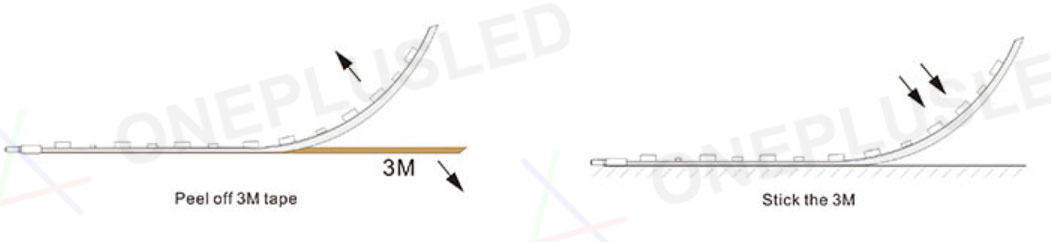

1) For IP40 & IP65 LED strip, clean the installation surface, pull the 3M paper out of the back of LED strip, and then fix to the mounting position directly.

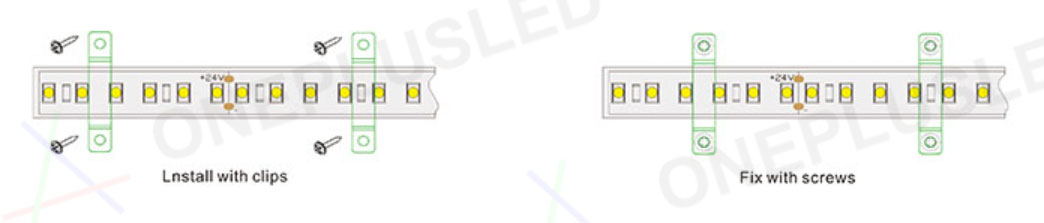

2) For IP67 & IP68 LED strip, clean the installation surface, put the LED strip on the position, and use silicone slip and screw fix to the mounting position. One meter LED strip with 2 pcs silicone slip.

Application:

- City lighting, landscape decoration, advertising wall, Christmas beauty decoration, ...

- Irregular body/building decoration (Night club, KTV, bar, shopping mall, hotel, art work, stage, vigil lighting, ...)

- Public lighting (Schools, hospitals, museums, libraries, airports, subway stations, railway stations, bridges...)

- Ceiling and furniture dark groove trim (Ceiling design, door, windows, wine cabinet, TV background, wardrobe, ...)

- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
